Swashplate Design for Helicopter Applications (AW95 Compatible)

Swashplate Design for Helicopter Applications (AW95 Compatible)

(quick video can be found on my website!)

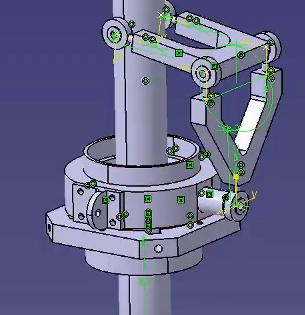

This digital product includes a comprehensive PDF document and STEP files detailing the design of a custom helicopter swashplate. Originally developed as an upgrade for the AW95 helicopter, this swashplate offers several improvements over the stock version.

Key features include:

• A scissor link for significantly reduced free play, enhancing stability and control.

• Use of an off-the-shelf ball bearing, replacing the original glued ball-on-tube solution for greater reliability and ease of assembly.

• Sealed design with rubber gaskets on both sides, allowing for proper lubrication and extended service life.

These plans are intended as a guideline for creating or adapting your own swashplate. Depending on your specific application, dimension adjustments may be required to ensure proper fit and function.

How Does a Digital Product Work?

1. Complete your purchase at checkout.

2. You will receive an email with a link or button labeled "Access Content."

3. Click the button to download your files instantly.

No physical item will be shipped — all content is delivered digitally.

Disclaimer
This is a digital design product only — no physical parts are included. While every effort has been made to provide a functional and reliable design, no warranties are expressed or implied.

By purchasing, downloading, or using these files, you accept full responsibility for any outcomes related to their use, including but not limited to construction, modification, installation, or operation.
Use of this design is entirely at your own risk. I do not accept any liability for damages, failures, injuries, or other consequences resulting from the use or misuse of this product or any derivative works.
